Fire Equipment Cleanroom Project – Magnesium Oxide Panels with Glass Combination Partition Wall

Guangdong Jiangmen Fire Equipment Cleanroom Project – 50mm Magnesium Oxide Purification Panels with Lower Panel and Upper Glass Combination Partition Wall – Integrated Enclosure for Four Functional Zones

Project Overview

Project Name: Guangdong Jiangmen Fire Equipment Cleanroom Construction Project

Application Zones: Laboratory, Office Area, Production Workshop, Visitor Walkway

Adopted Product: 50mm/1150mm machine-made magnesium oxide purification sandwich panels

Custom Design: Combination partition wall with solid sandwich panels at the lower part and cleanroom aluminum framed tempered glass on the upper section

Core Demands: Class A fire resistance, antibacterial performance, sound insulation, high cleanliness, and visual transparency for visitor observation.

Project Challenges

The enclosure system of this fire equipment manufacturing workshop faces multiple strict standards.

Fire Safety Requirements

Fire equipment assembly involves combustible electronic components, plastic accessories and packaging materials. Partition fire compartments need to pass official fire acceptance, and core materials must reach Class A non-combustible grade.

Cleanliness & Antibacterial Standard

The laboratory undertakes fire equipment performance testing, requiring cleanroom-level air tightness, antibacterial capacity and dust-free environment without particle pollution.

Transparent Visitor Walkway

The client expected a visible walkway to display production processes. However, fully solid walls cause a cramped space, while all-glass partitions fail to satisfy fire separation regulations.

Integrated Enclosure for Four Zones

Laboratory, office, production workshop and visitor walkway have differentiated demands, which need to be realized via one unified magnesium oxide purification panel system.

Material Selection

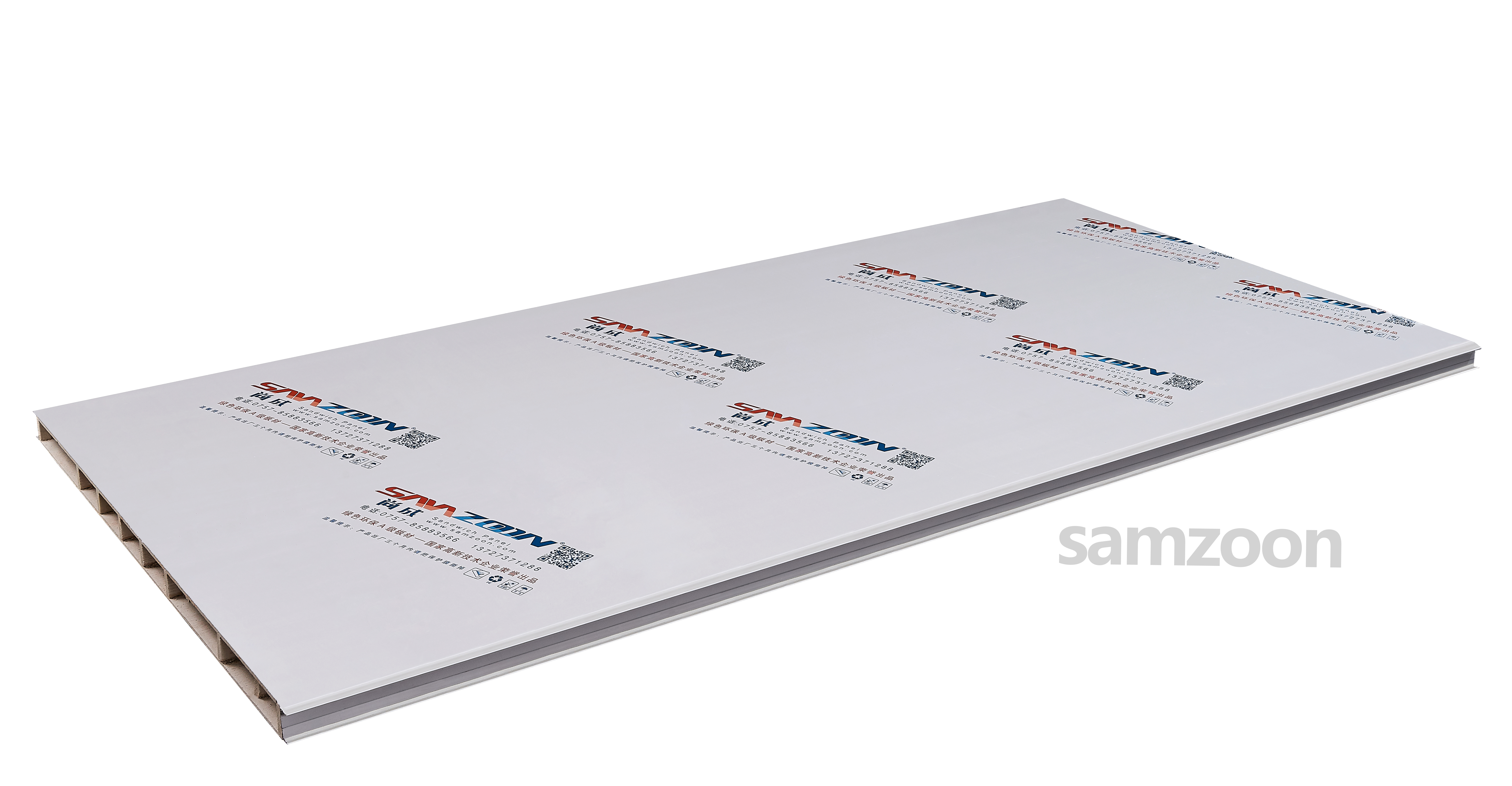

Main Material: Shangcheng 50mm/1150mm Machine-made Magnesium Oxide Purification Sandwich Panels

Full technical parameters match all project specifications:

Effective Width: 1150mm

Thickness: 50mm (75mm / 100mm customizable)

Length: Custom production according to project drawings (max ≤6000mm normally)

Core Material: Non-halogen magnesium sulfate, magnesium oxide and brine ternary material, reinforced by medium alkali fiberglass mesh

Surface Option: High-grade polyester coated steel, fluorocarbon coated color steel, galvanized steel or 304 stainless steel

Connection Method: Tongue-and-groove interlocking joint

Fire Performance: Class A non-combustible. No melting, no high-temperature molten drips and no toxic fumes during combustion.

Advantages of Magnesium Oxide Purification Panels for This Workshop

The inorganic magnesium oxide core material perfectly meets the operating conditions of fire equipment factories:

✅ Class A Fireproof & Non-combustible

Inorganic non-halogen raw materials will not sustain combustion. No molten drops or harmful smoke under open flame, perfect for fire separation compartments.

✅ Moisture-proof, Antibacterial & Non-halogen

Waterproof, odorless, anti-corrosion and anti-cracking compact surface. Effectively adapt to high temperature and high humidity climate in Jiangmen.

✅ High Strength & Light Weight

Excellent impact resistance and seismic performance, convenient for fast on-site installation.

✅ Dust-free & Easy to Sanitize

Smooth compact surface prevents dust and particle accumulation, fully meeting cleanroom standards.

Core Custom Solution: Lower Panel + Upper Glass Combination Partition Wall

The highlight design of this project is the composite partition wall combining bottom solid magnesium oxide purification panels and top glass:

Lower Section (0–1100mm from ground)

50mm magnesium oxide purification solid panels undertake primary fire separation function.

R50 arc aluminum trim installed at floor corners to avoid dust accumulation.

Medical neutral continuous sealant applied on all panel joints.

Upper Section (1100mm to ceiling)

Cleanroom aluminum frame tempered glass. Interlayer aluminum blinds optional for flexible privacy control.

Arc transition and sealing treatment between glass top edge and ceiling.

Continuous panoramic glass along visitor walkway to realize full visibility of the production line.

Ceiling System

Walkable continuous ceiling assembled with 50mm magnesium oxide purification panels.

Tongue-and-groove panels matched with hidden keel framework.

Arc transition design for all internal and external corners.

Construction Tip: Wall panels above glass windows shall be reserved about 5mm shorter than adjacent walls, to avoid glass breakage caused by pressure transfer.

Application in Four Functional Zones

Laboratory Area

Totally sealed enclosure by 50mm magnesium oxide purification panels, matte dust-free surface and seamless joints. Upper glass windows support office staff to observe internal experiments conveniently.

Office Area

Bottom magnesium oxide panels isolate workshop noise and dust; upper glass brings sufficient natural light, forming independent physical separation from the production area.

Production Workshop

Complete partition walls and walkable ceiling using 50mm magnesium oxide purification panels, building a Class A fireproof, dust-free and anti-static environment for fire equipment assembly.

Visitor Walkway

The core scene of composite partition design. Visitors can overlook the whole workshop through continuous upper glass. Transparent production display is realized, meanwhile lower solid magnesium oxide panels guarantee standard fire separation.

Project Benefits

✔ Pass official fire safety acceptance: Class A non-combustible magnesium oxide core meets fire compartment codes

✔ Satisfy strict cleanroom requirements: Dust-free surface & arc corners eliminate sanitary dead zones

✔ Realize visual transparent access: Composite partition turns visitor passage into enterprise exhibition channel

✔ Short construction cycle: Prefabricated panels for rapid on-site assembly

✔ Lower long-term maintenance cost: Stable magnesium oxide panel, moisture resistant and non-halogen
