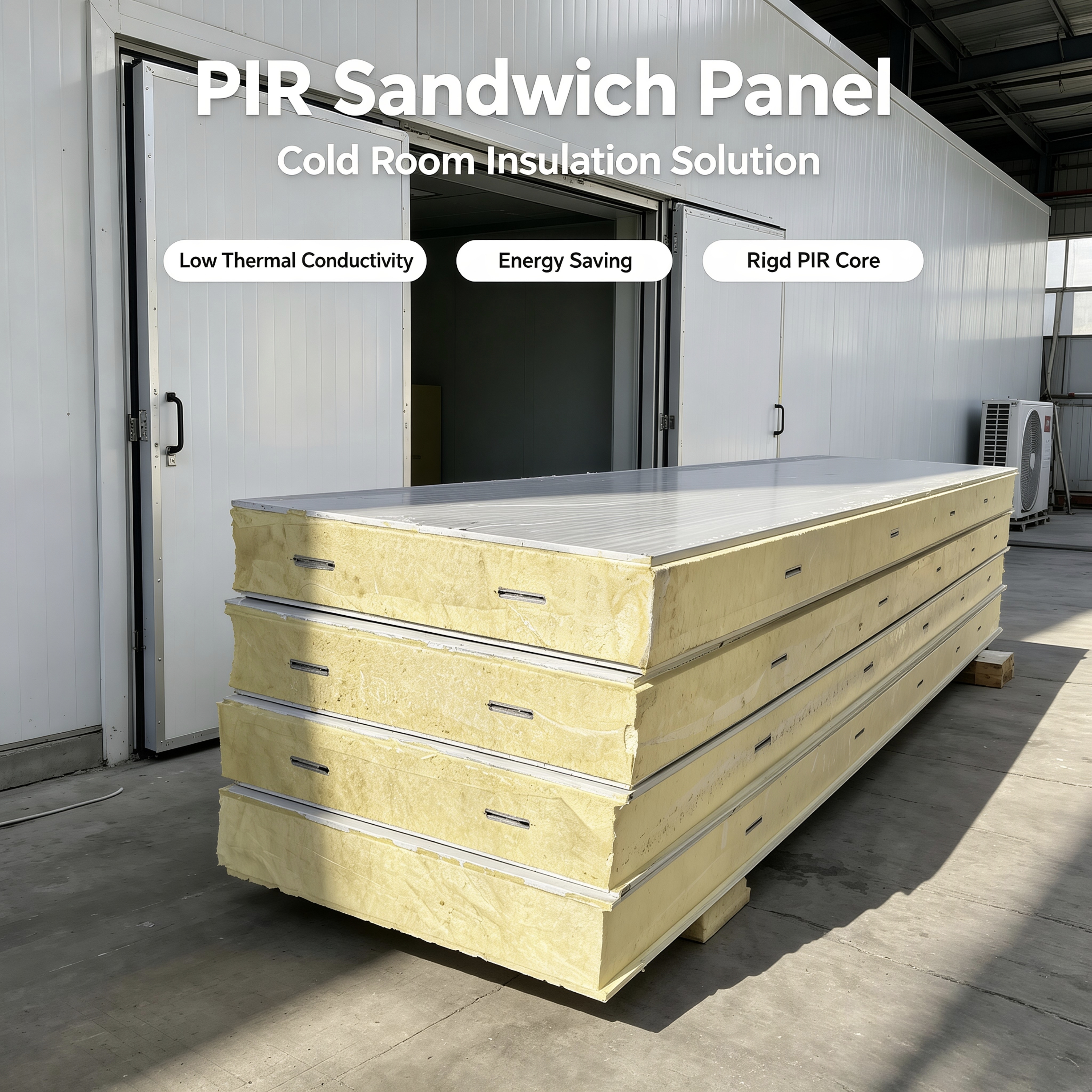

PIR Sandwich Panel: PIR VS XPS Sandwich Panel Comparison
⚖️ PIR sandwich panel and XPS sandwich panel are two mainstream foam-core thermal insulation wall materials widely used in industrial buildings and cold-chain projects. PIR sandwich panel and XPS sandwich panel both adopt closed-cell foam structure, which can effectively reduce heat transfer and block moisture penetration. However, there are obvious differences in fire resistance, low-temperature stability and long-term thermal insulation retention. Many procurement engineers are confused about their applicable scenarios. Wrong material selection may lead to fire non-compliance, insulation attenuation and increased operating energy consumption. Based on numerous South China project cases, SAMZOON carries out multi-dimensional comparison and scenario-based selection suggestions for PIR sandwich panel and XPS sandwich panel.
?Fire Resistance PerformancePIR sandwich panel has prominent fire performance. When exposed to flame, PIR foam will form a dense carbonized char layer to stop flame spread and heat transfer. High-quality PIR sandwich panel can reach B1 fire rating. XPS sandwich panel is a thermoplastic foam material. Ordinary XPS will melt and drip under fire. Even with flame retardant additives, XPS’s fire resistance will degrade significantly after long-term aging. For projects with strict fire safety requirements, PIR sandwich panel is the preferred choice.
?️Thermal Insulation & Temperature StabilityPIR sandwich panel has low thermal conductivity and maintains stable insulation performance under long-term alternating cold and hot conditions. PIR sandwich panel can adapt to deep-freeze cold storage environment without obvious brittleness. XPS sandwich panel has good thermal insulation at normal temperature, but ordinary XPS sandwich panel will become brittle under long-term ultra-low temperature. Meanwhile, XPS sandwich panel is prone to thermal shrinkage when exposed to continuous high-temperature radiation.
?Water Absorption & Moisture ResistanceXPS sandwich panel is famous for ultra-low water absorption rate of its integral foam core. But cutting will destroy the closed-cell structure of XPS sandwich panel, so edge sealing is required. PIR sandwich panel also has closed-cell structure and low water absorption. After proper edge sealing treatment, PIR sandwich panel can keep stable performance in high-humidity coastal areas. Both PIR sandwich panel and XPS sandwich panel need full sealing for cut and drilled positions.
?️Compressive StrengthXPS sandwich panel has high compressive strength, thanks to its dense extruded closed-cell structure. It can bear certain load pressure and is suitable for load-bearing insulation positions. The compressive performance of PIR sandwich panel depends on foam density. High-density customized PIR sandwich panel can achieve comparable compression effect, but the material cost will increase accordingly.
?Material CostUnder conventional specifications, PIR sandwich panel has higher unit price than XPS sandwich panel. XPS sandwich panel has cost advantages for general constant-temperature workshops. PIR sandwich panel is worth the extra investment for cold storage and projects with strict fire standards.
?Scenario-Oriented Selection Suggestions‑ PIR sandwich panel: priority for cold storage, deep-freeze warehouse, industrial buildings and projects with strict fire acceptance requirements. ‑ XPS sandwich panel: suitable for constant-temperature logistics auxiliary rooms, high-humidity factory insulation, load-bearing insulation positions; avoid direct use near continuous high-temperature heat sources and deep-freeze zones unless modified formula is adopted.
? As a Foshan local source manufacturer, SAMZOON produces PIR sandwich panel and XPS sandwich panel. We support customized formula adjustment, urgent production scheduling and free sample testing. Our technical team provides professional material-selection suggestions according to project temperature, load condition, fire-protection requirement and budget, helping customers avoid wrong-selection risks. A large number of South China industrial and cold-chain project cases are available for your reference.
When choosing between PIR sandwich panel and XPS sandwich panel, do not only compare unit price. Balance fire rating, operating temperature range, insulation retention and mechanical requirements. Rational material matching is the key to guarantee stable project operation.
